Approach

The aim of this project was to combine an input device and an output device, and collect a usable data from their interaction.

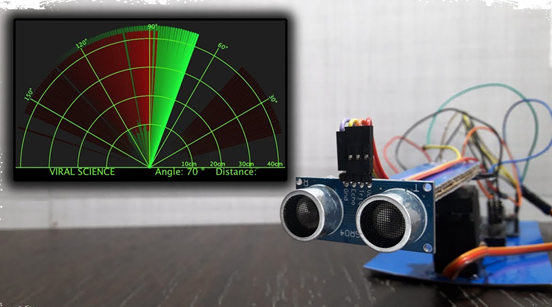

I've created an interface on Processing on which a skecth of a radar is shown and it interacts with the ultrasonic sensor which is mounted on a servo motor

As the servo motor rotates it scans an angle of 150 radians which is displayed on sketch made using processing.

What steps did I follow?

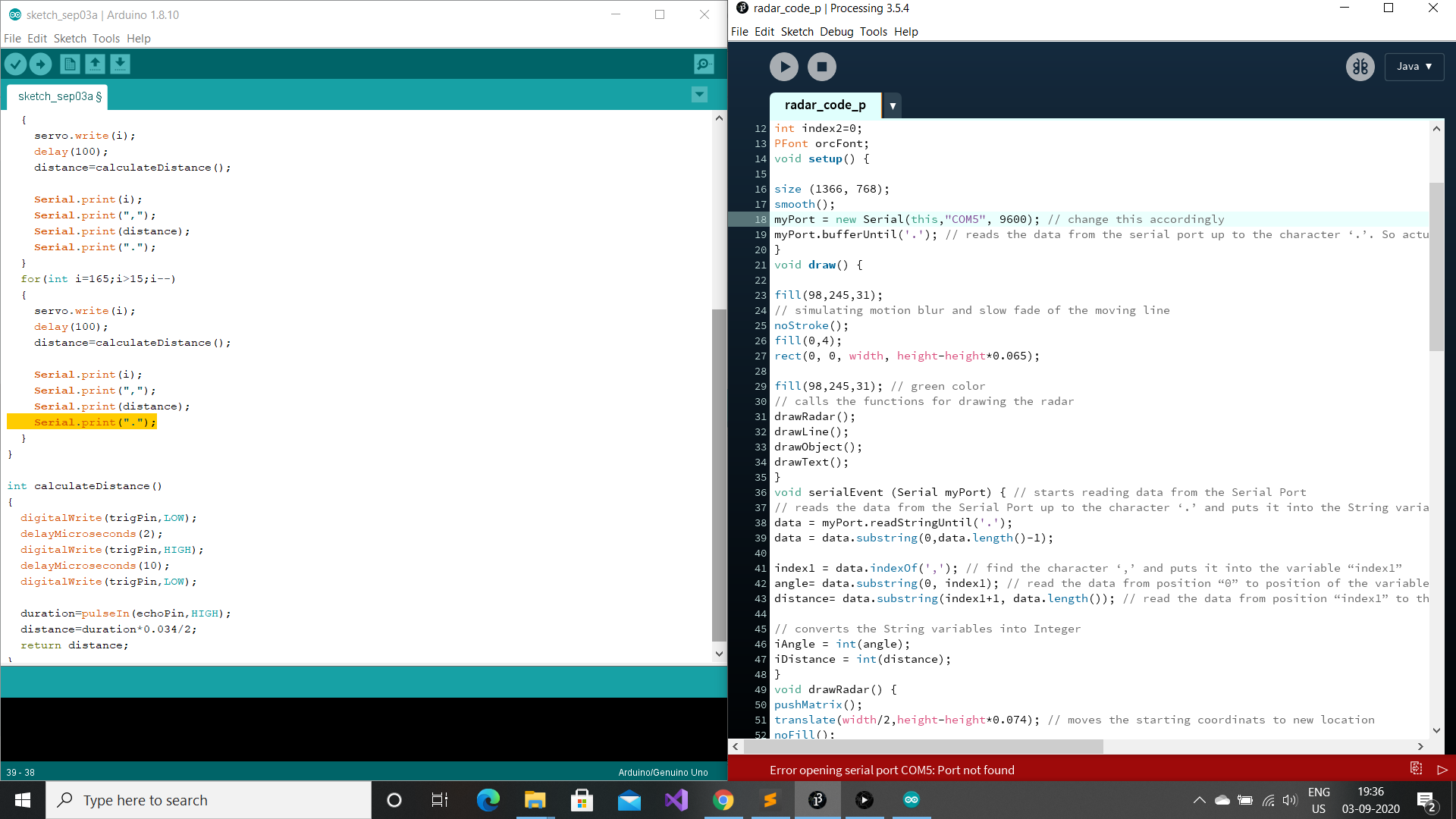

First I worked on my Processing code to make the interface, for which I took a help of a Youtube chanel.
After then I wrote my Arduino code for the functioning of the servo motor and the ultra sonic sensor.
Then I moubted my ultra sonic sensor on the servo motor using double sided tape.
After completing all the stuff mention I finally made my circuit which was pretty easy and took less time.
Finally it was complete and here is video of working model

Codes

The codes for both arduino and Processing is uploaded on Github
