MAGNETICALLY
TUNABLE BAND PASS AND BAND STOP FILTERS

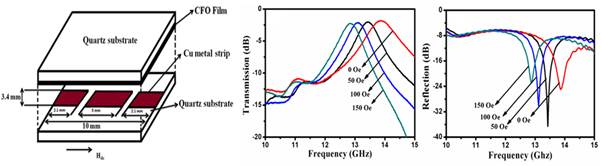

(i.) Resonator
type bandpass filter design with CFO thin film in the flip-chip geometry and
Transmission characteristic of microwave filter.
In
the communication systems such as radars and satellite technology, high
operational frequency devices are required, but in the processing of these
devices, some unwanted frequencies are always present, which affect the working
of the device. To reduce this problem, microwave filters are used.

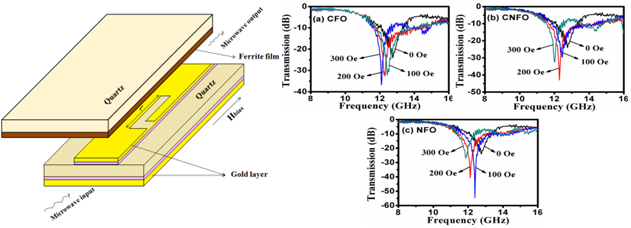

(ii.) Designed
spur-line based bandstop filter with ferrite thin films in the flip-chip
geometry and Transmission characteristic of microwave filter.

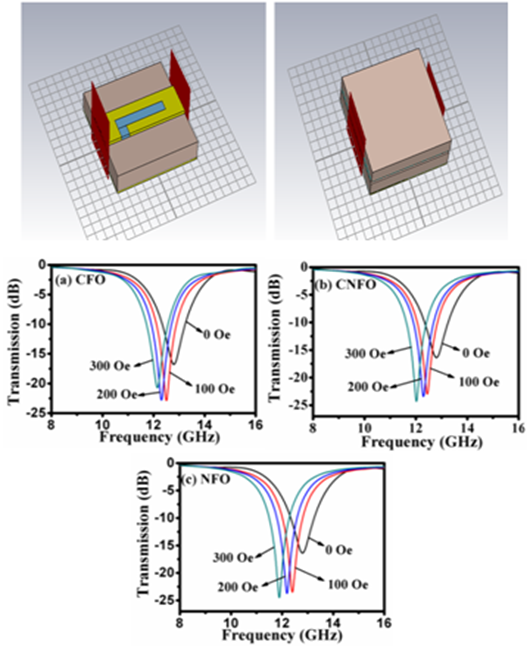

(iii.) Designed
the spur-line bandstop filter with ferrite thin films in the flip-chip geometry
by CST microwave studio and simulated transmission characteristic of microwave
filter.

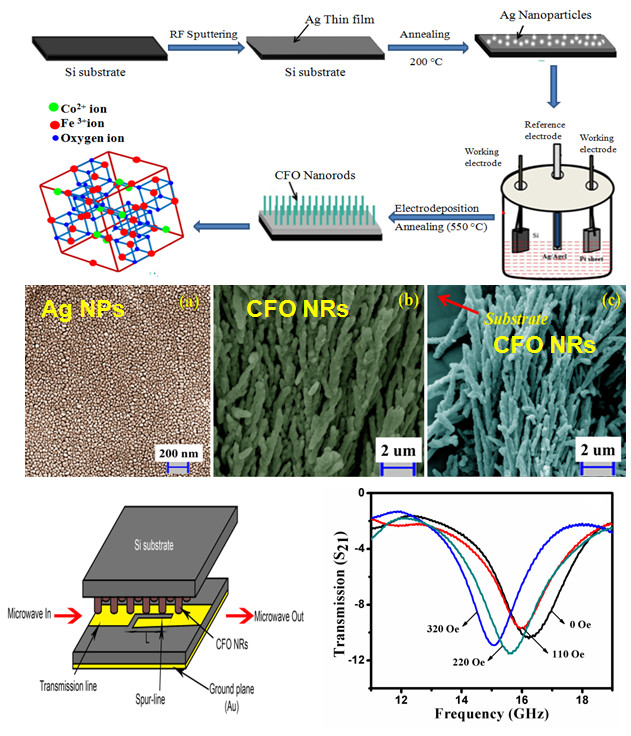

(iii.) Designed
the spur-line bandstop filter with CFO NRs in the flip-chip geometry and
Transmission characteristic of the bandstop filter.
